SPECIFICATIONS

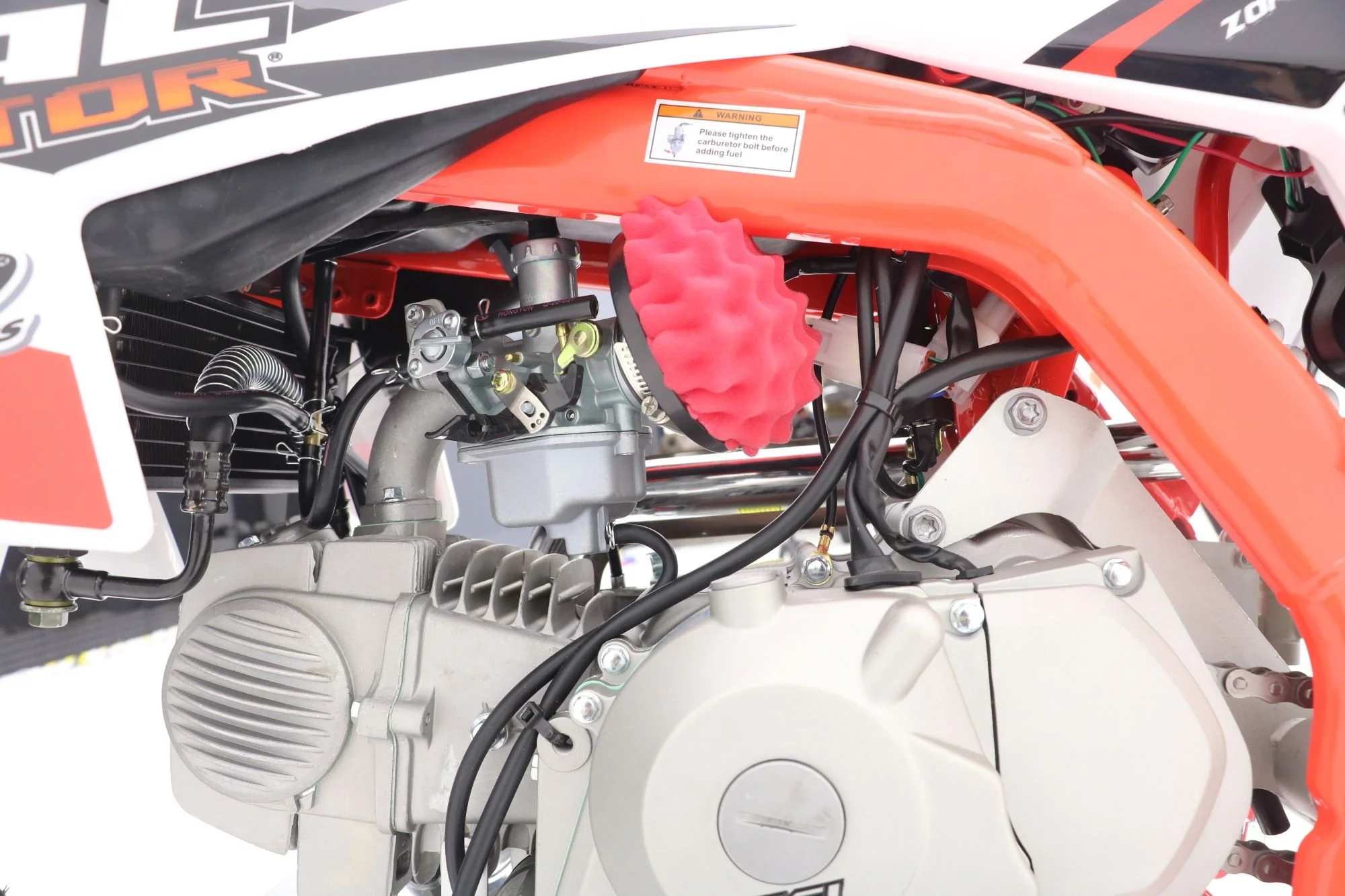

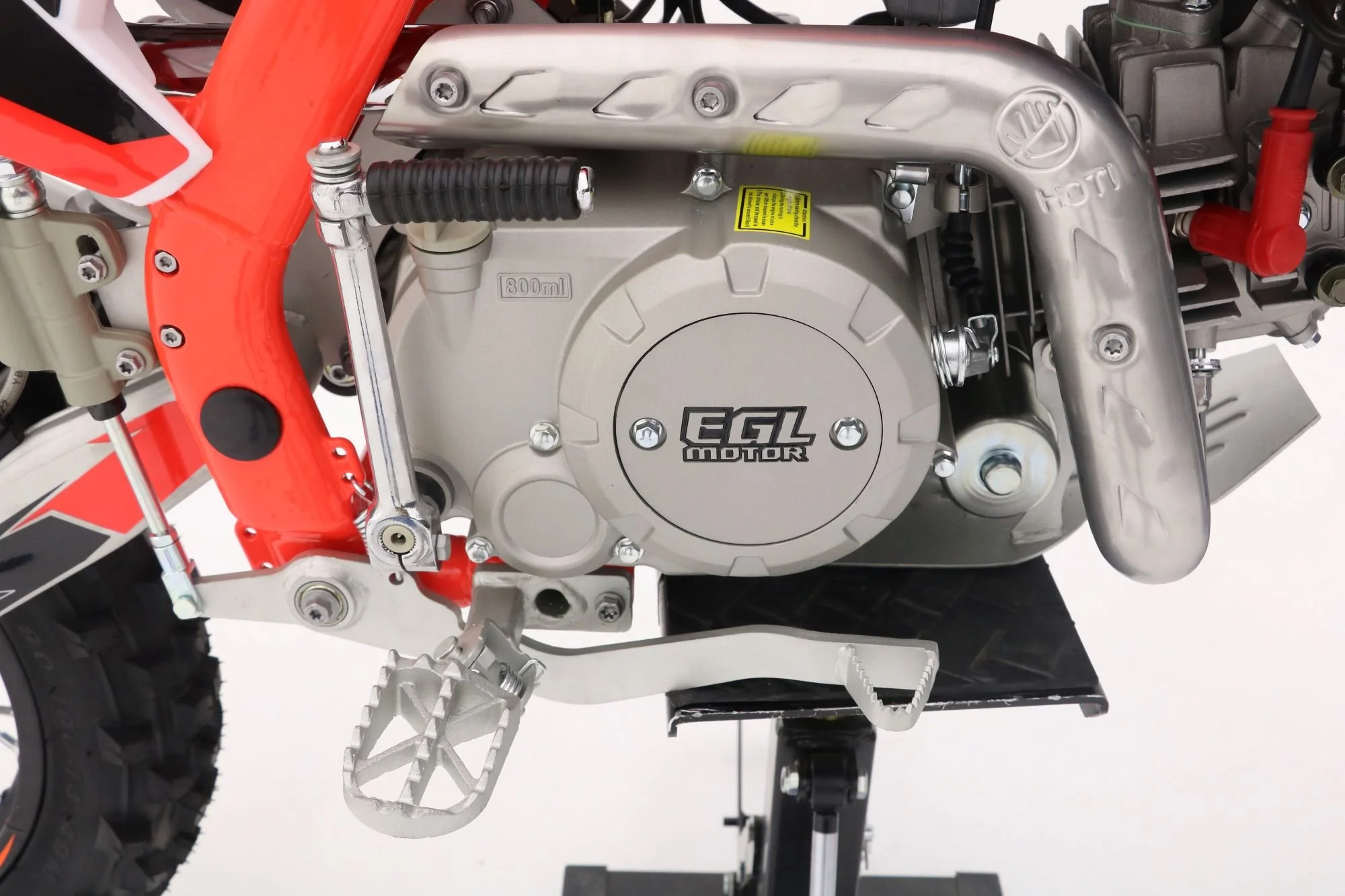

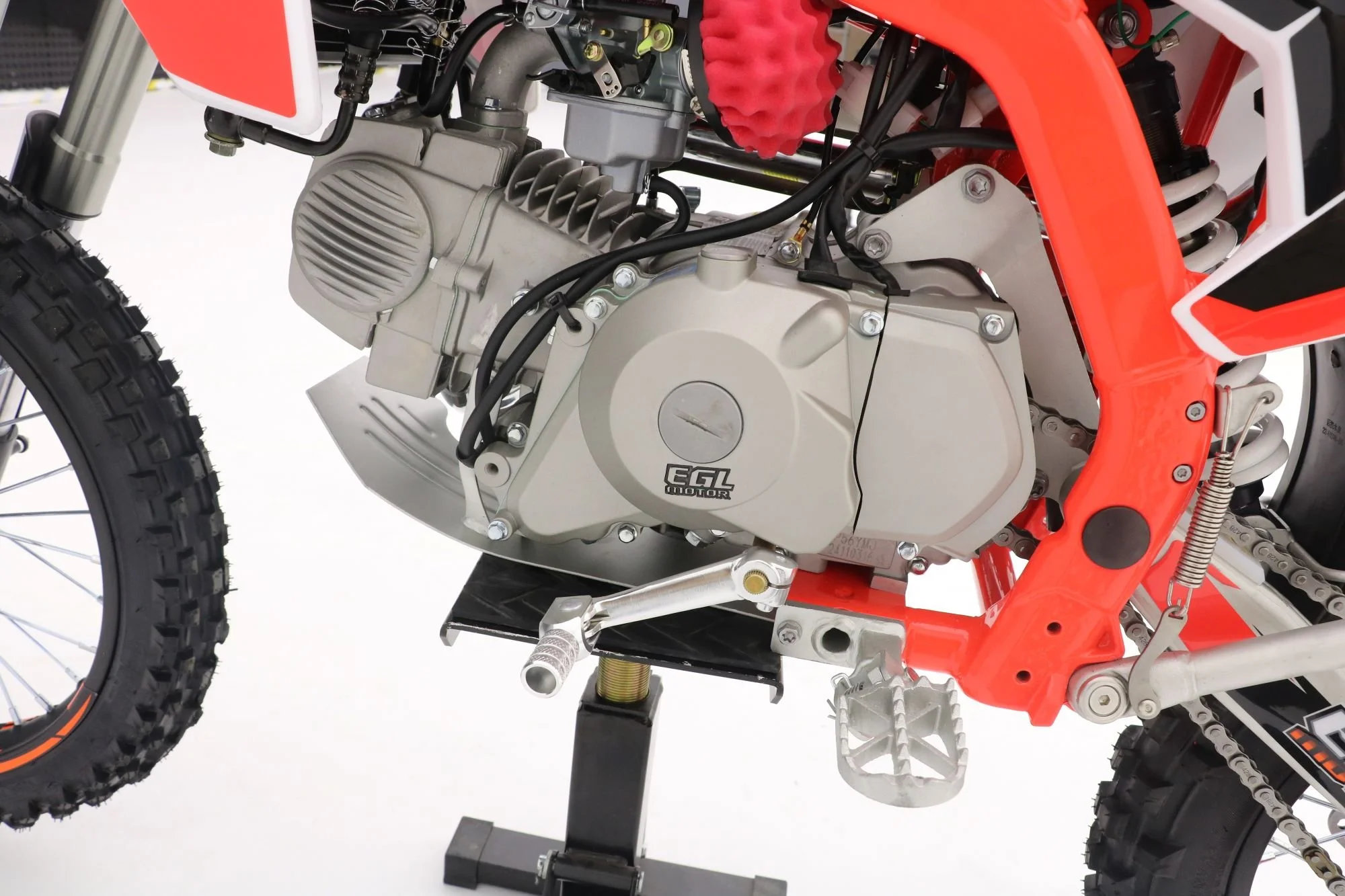

ENGINE

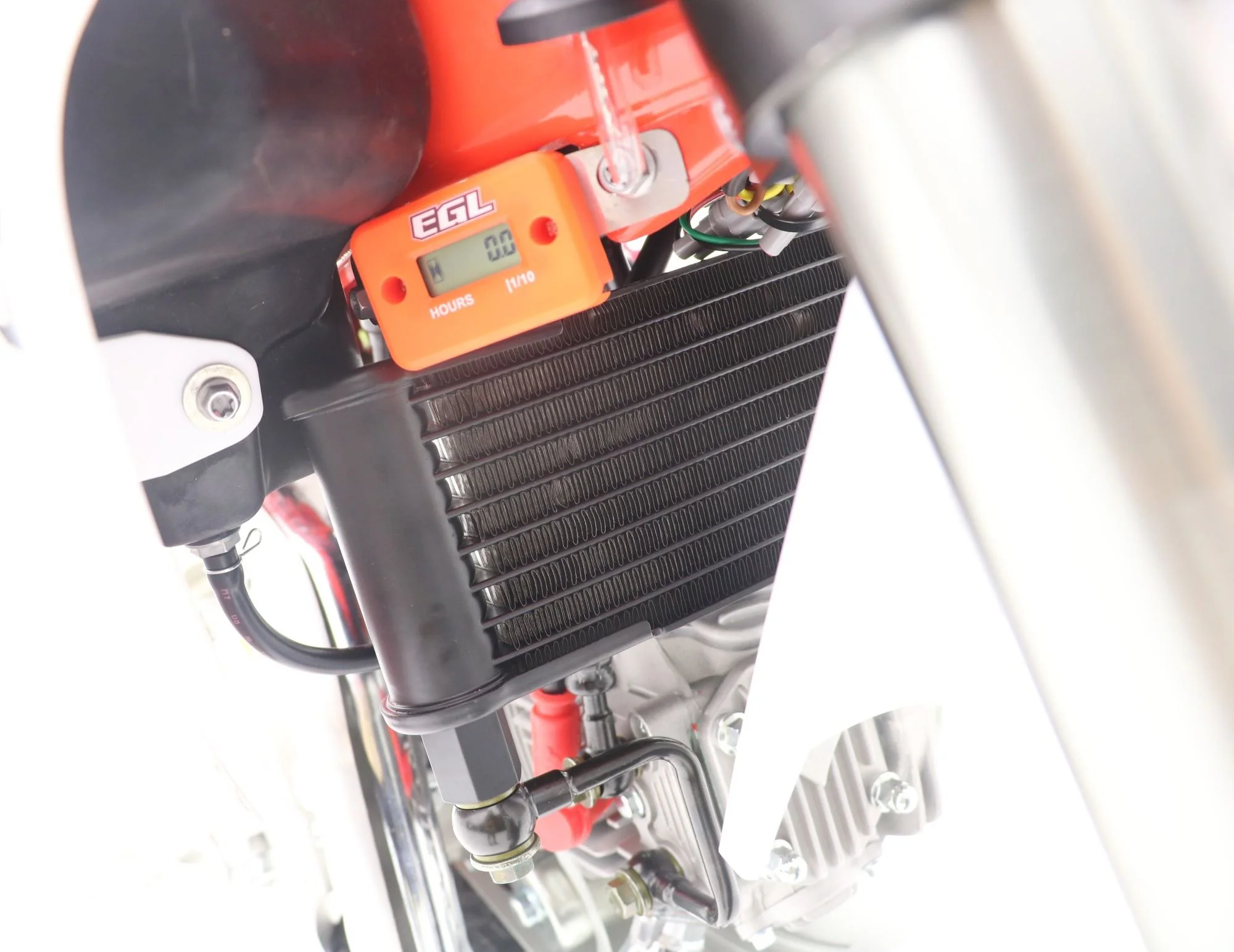

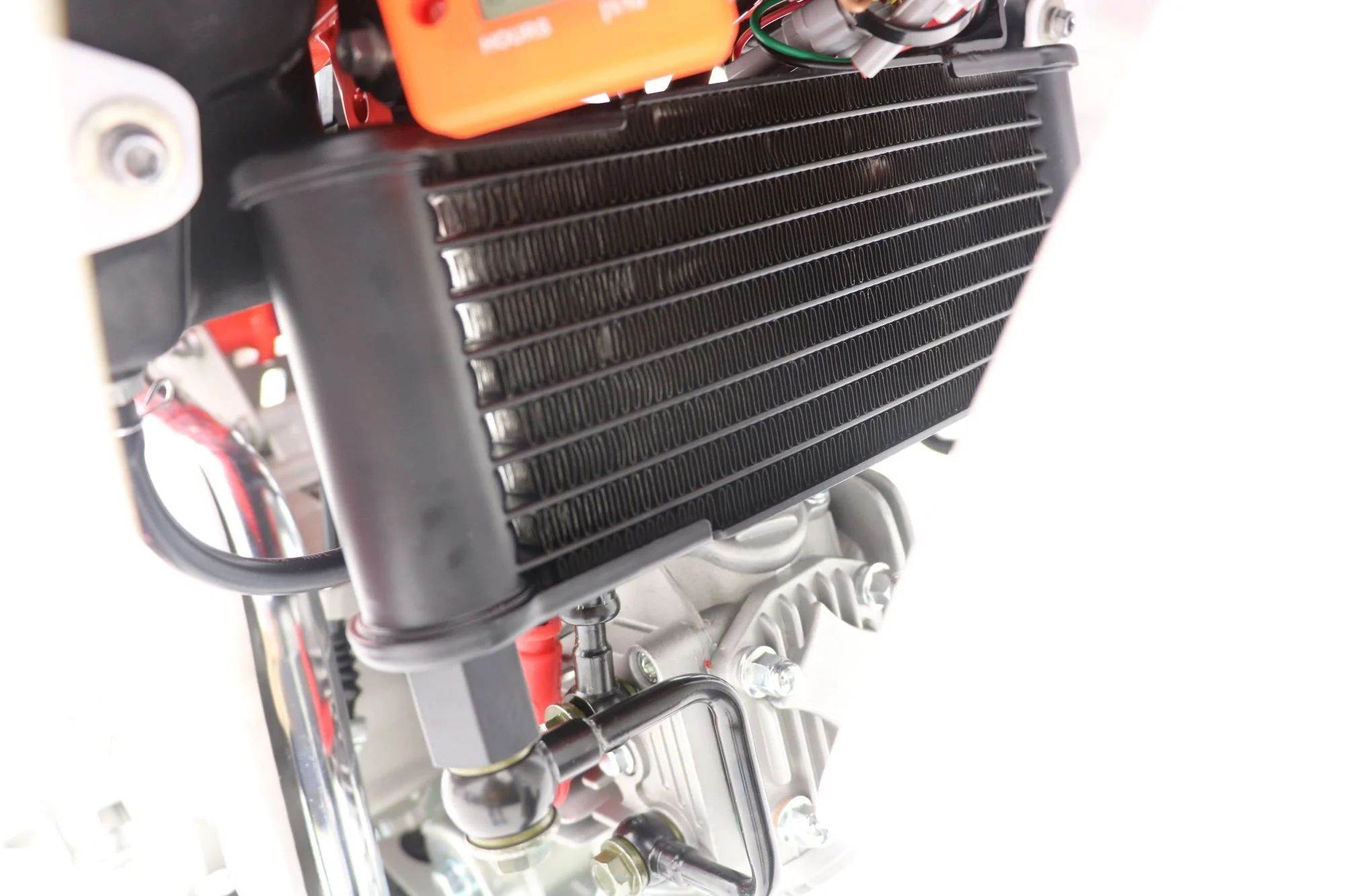

ENGINE TYPE Single cylinder, 4-stroke, ZONSEN Brand, oil cooling

DISPLACEMENT 140.4 ml

BORE/STROKE 56 × 57 mm

Rated Power 7.2 kw/8500 r/min

MAX TORQUE 9.5N.m/6000 r/min

COMPRESSION RATIO 8.6 : 1

TRANSMISSION

CLUTCH Manual, Wet Multi-Plate

GEARBOX 1-N-2-3-4

DRIVE MODE Chain Drive

SPROCKET 428/41 teeth

STARTUP METHOD

Kick/Electric start

BATTERY 12V 4A

CHASSIS & BRAKES

FRAME Chrome-molybdenum steel, electrophoresis + spraying

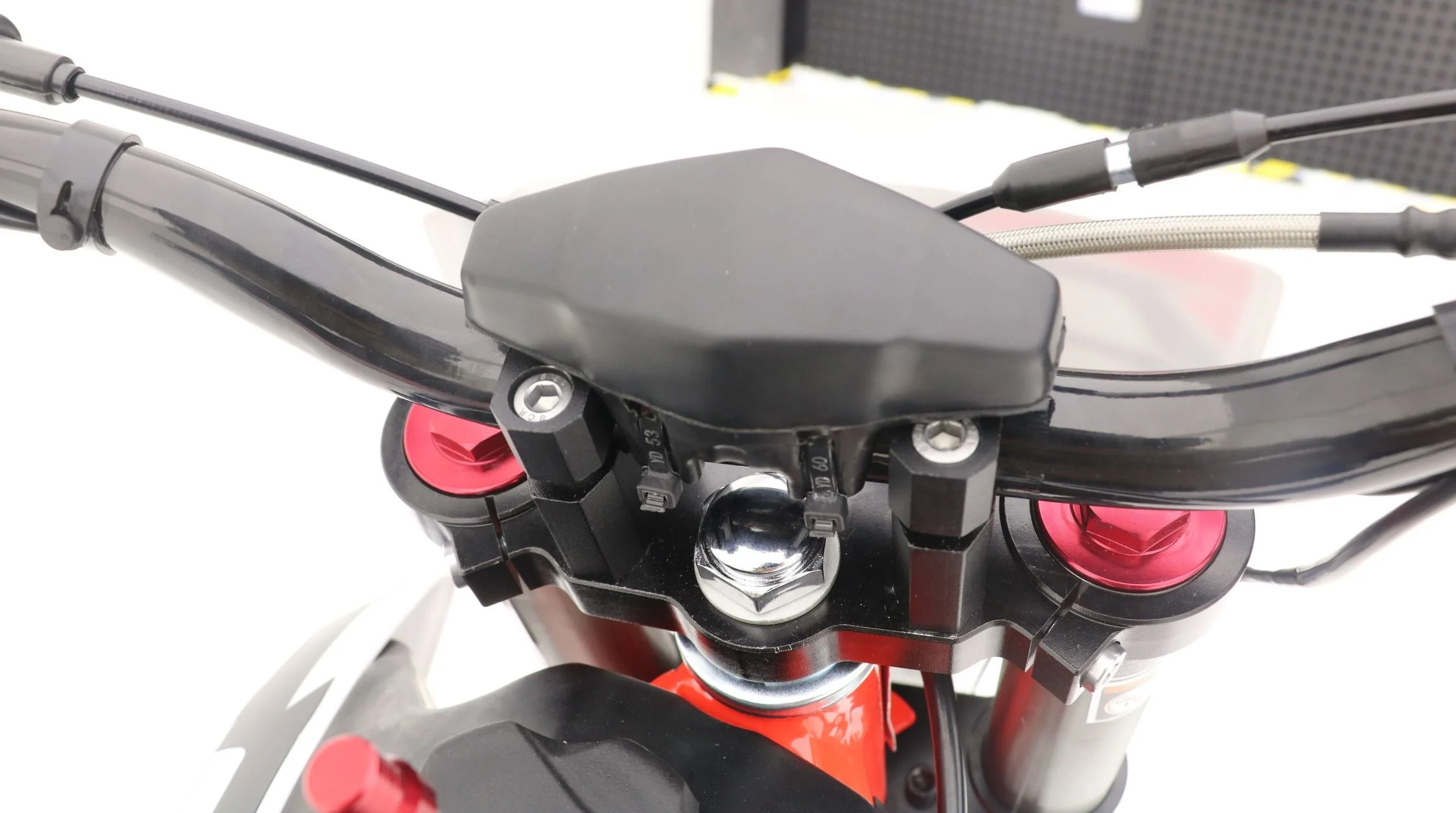

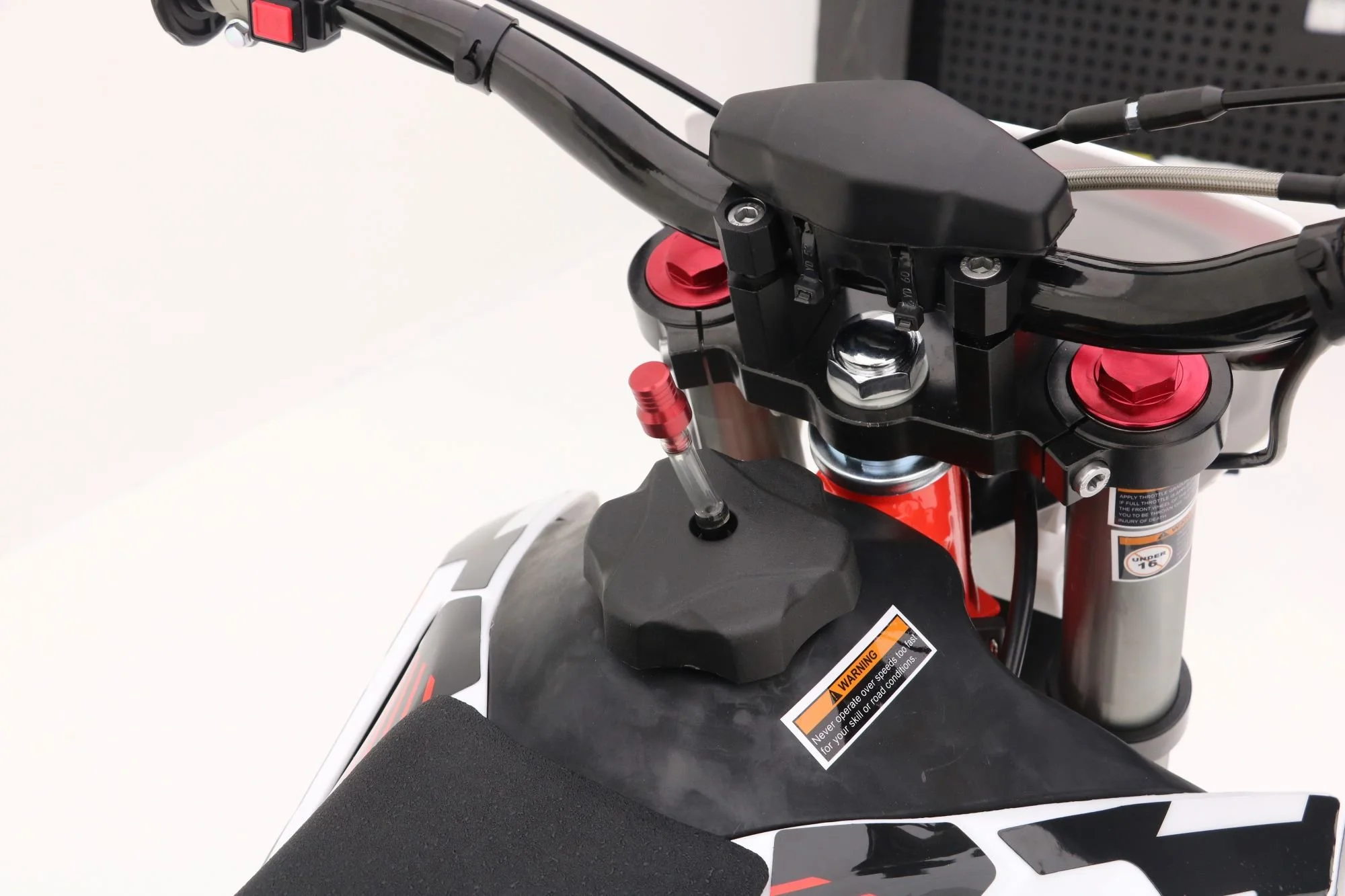

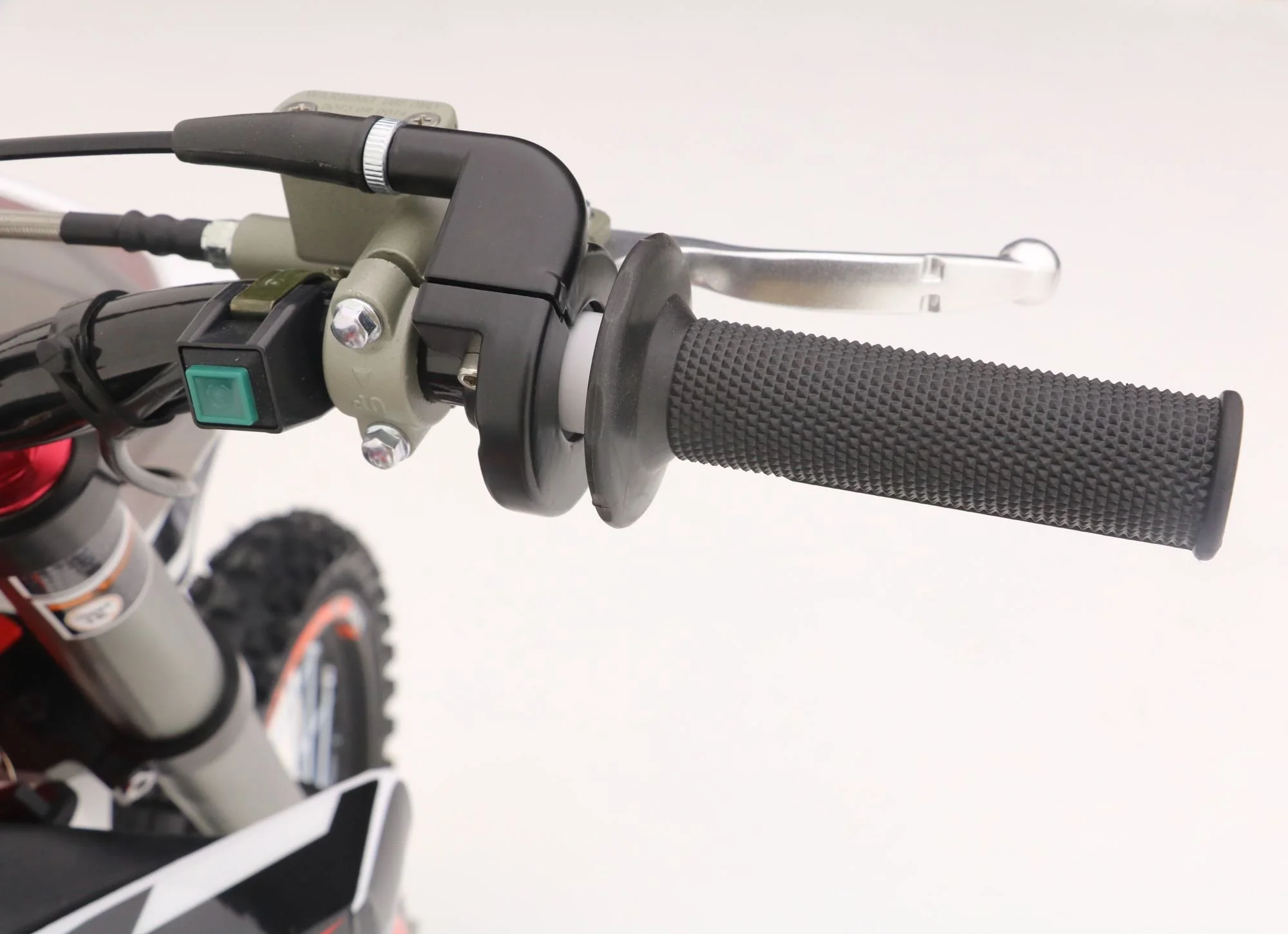

HANDLEBAR Iron, reduced diamter 28/22 mm

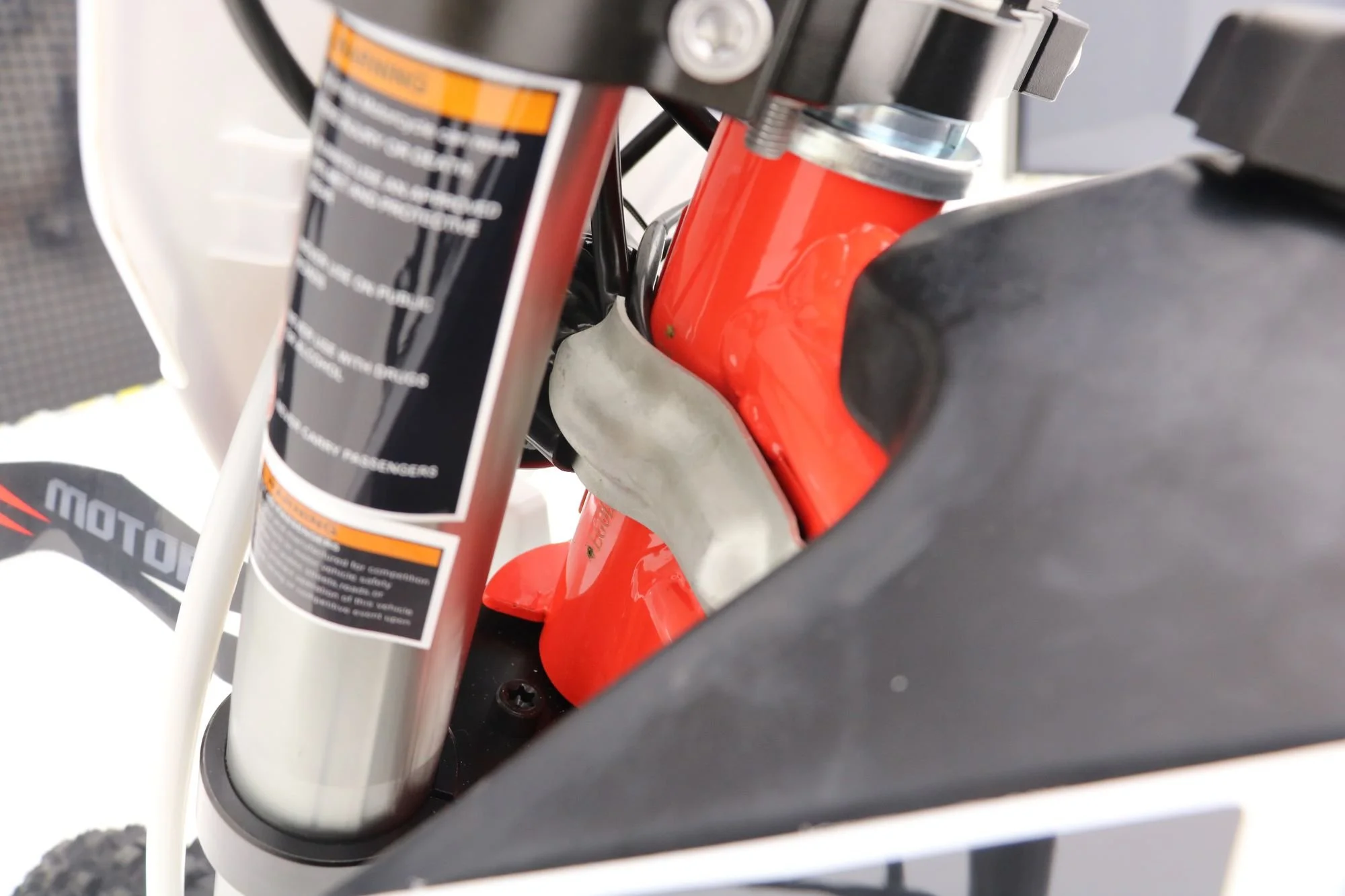

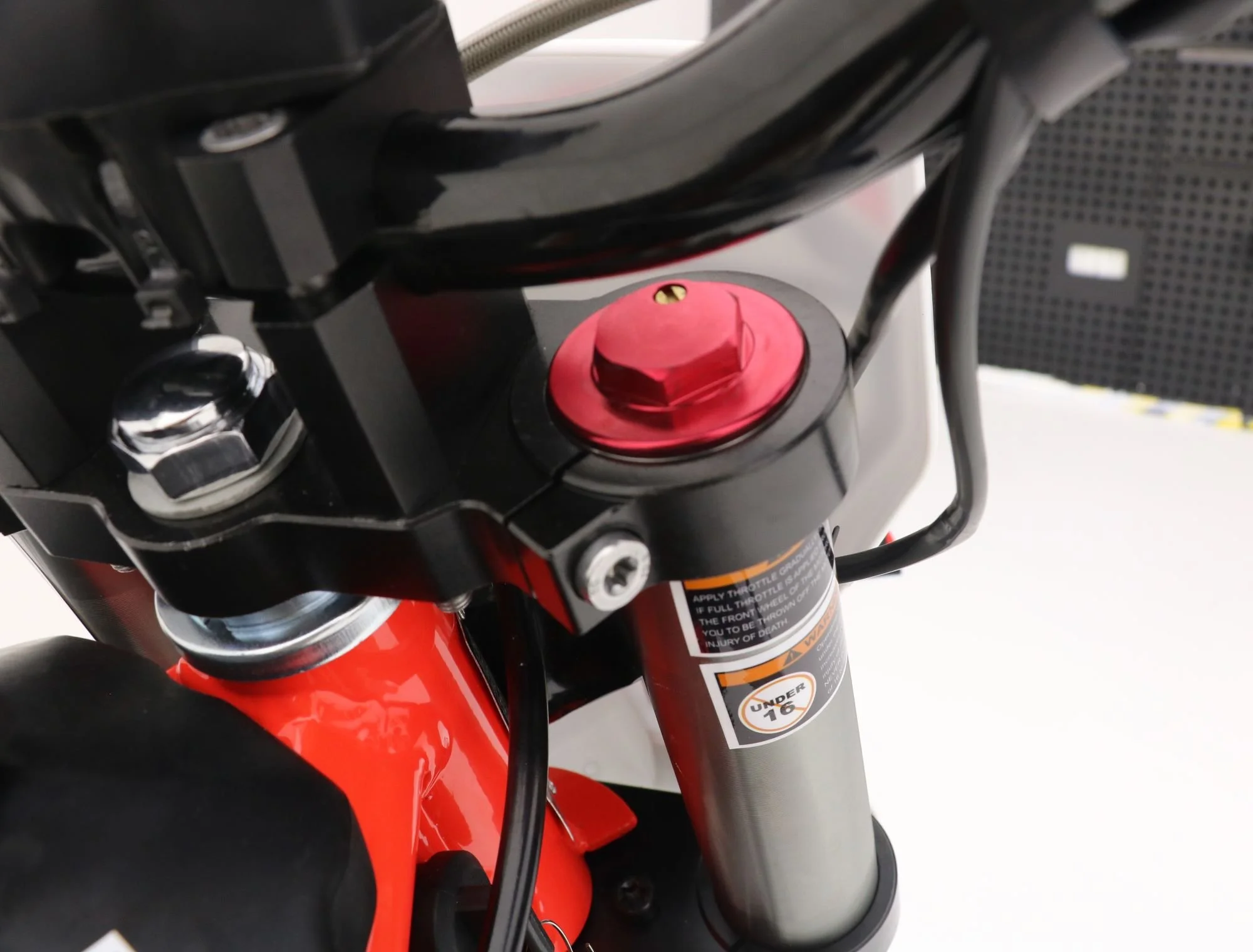

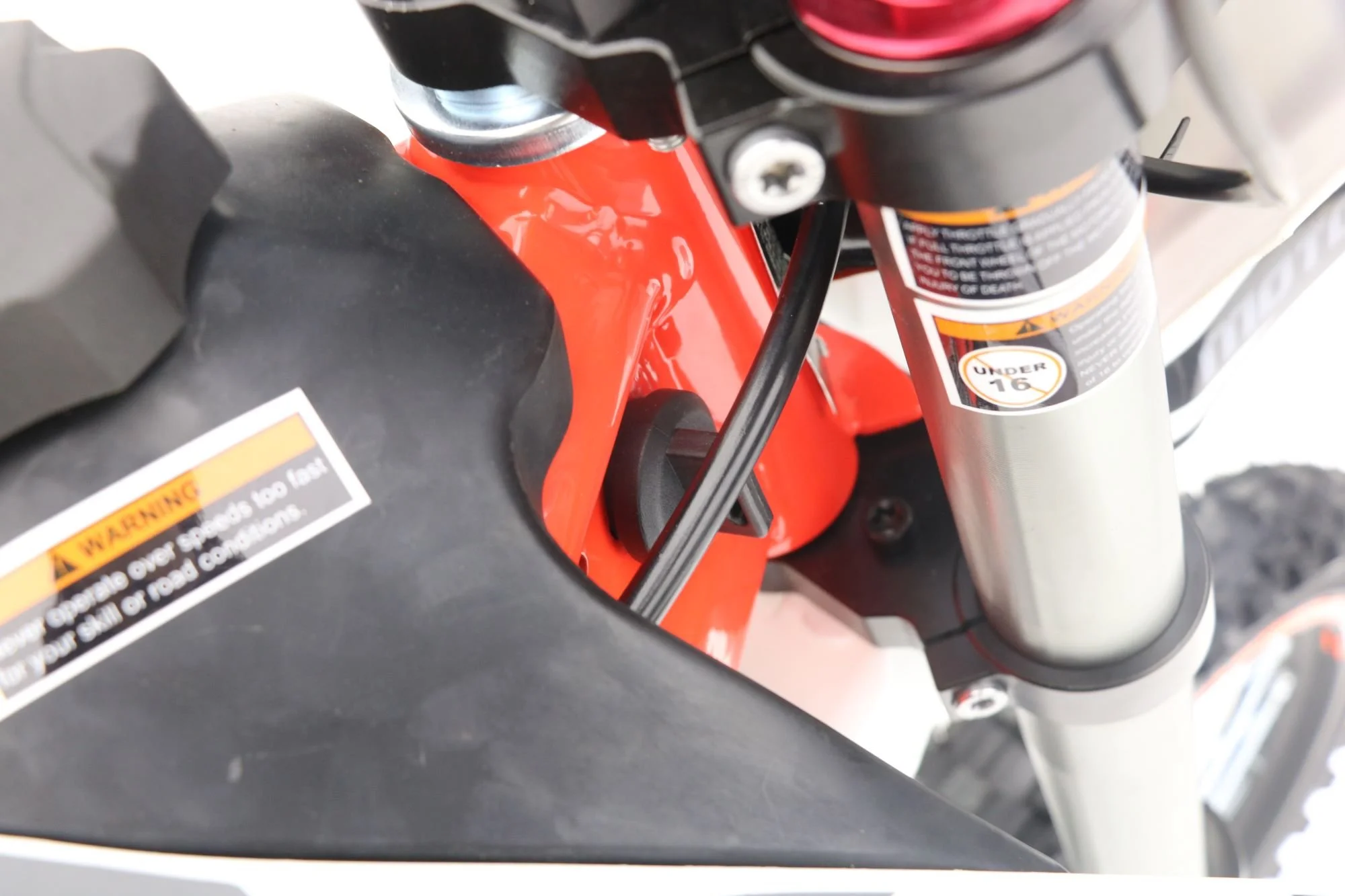

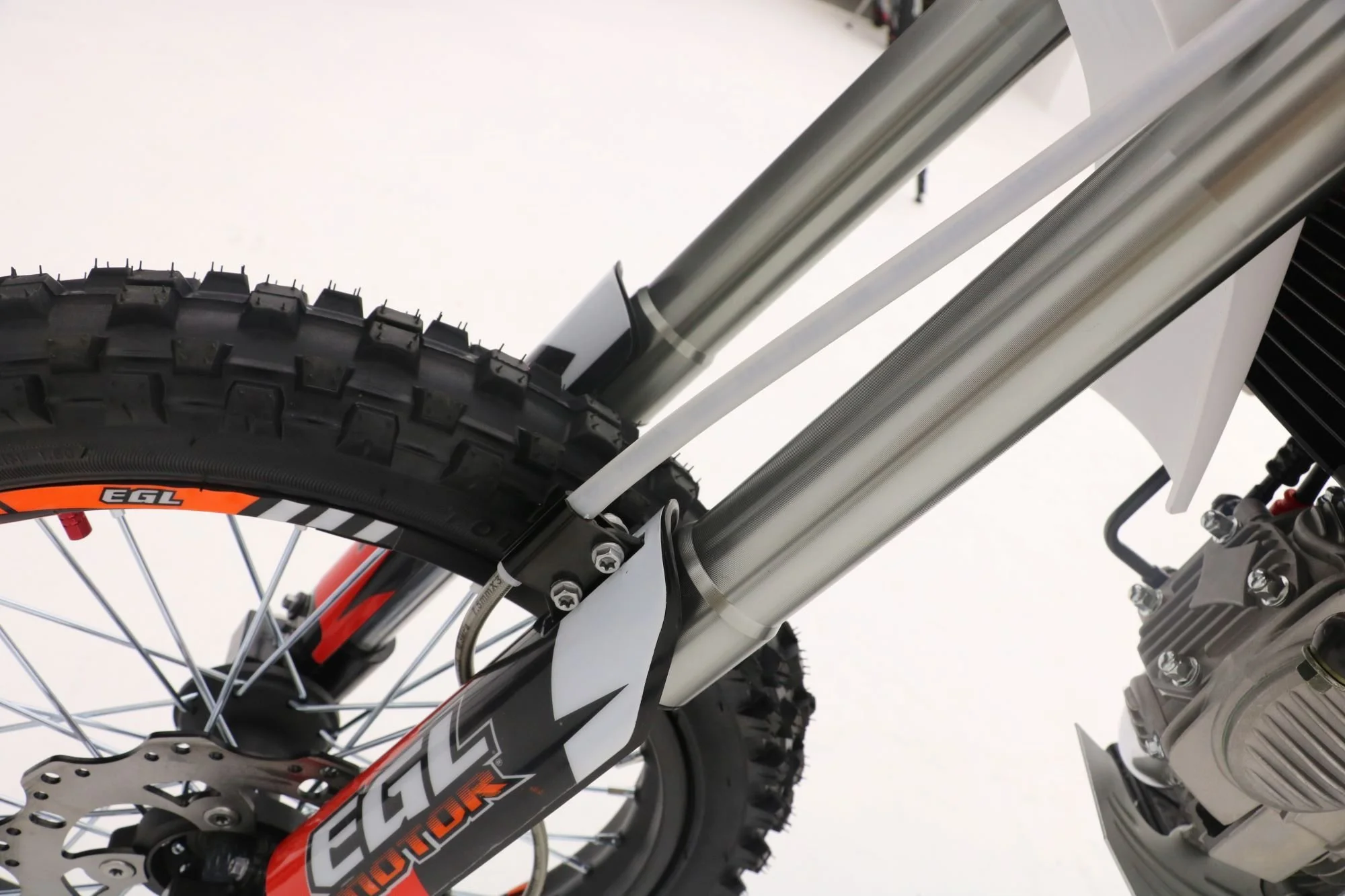

FRONT SHOCK/ ADJUSTABILITY 735mm 45/48 inverted horse foot shock absorber

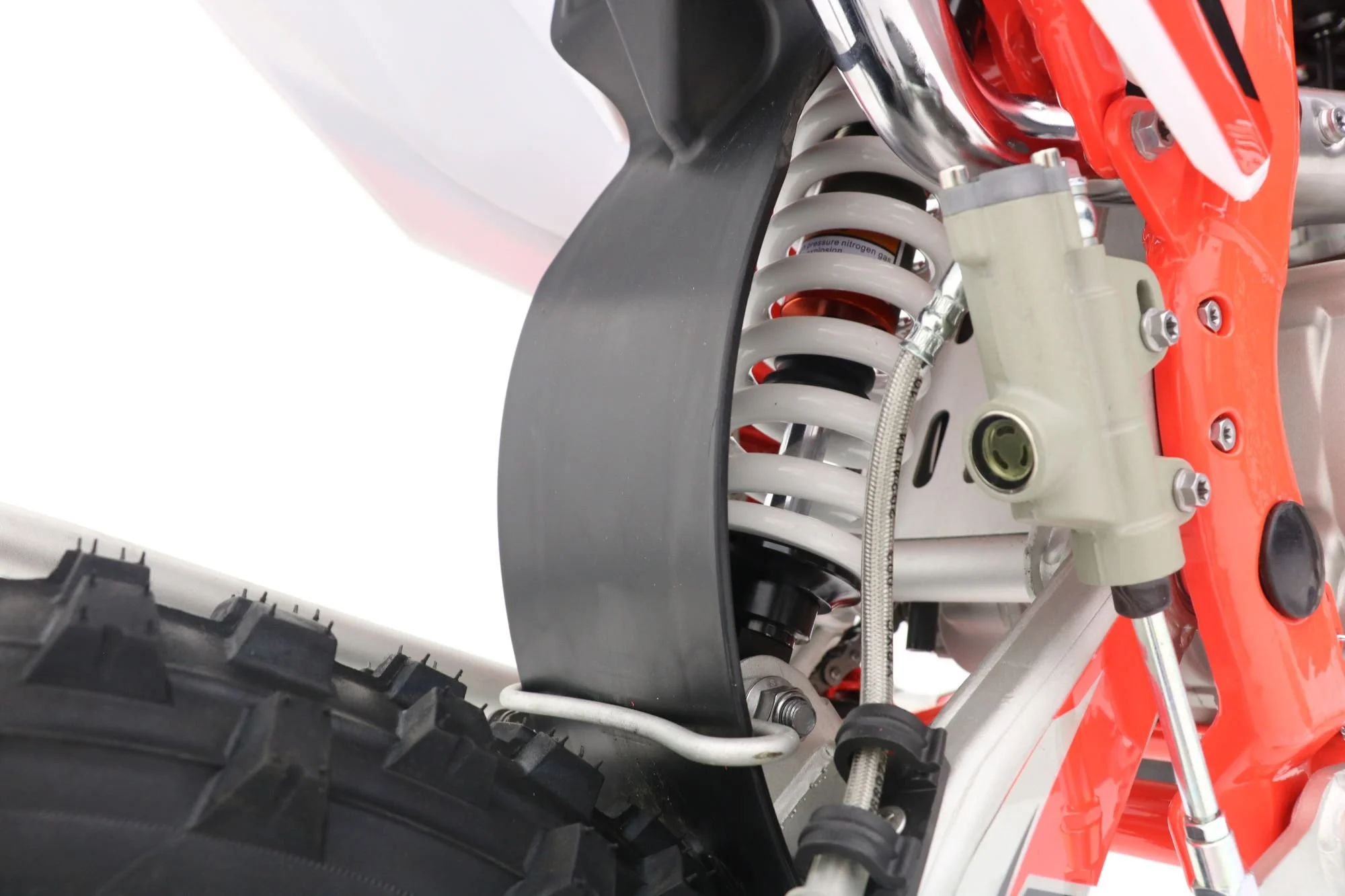

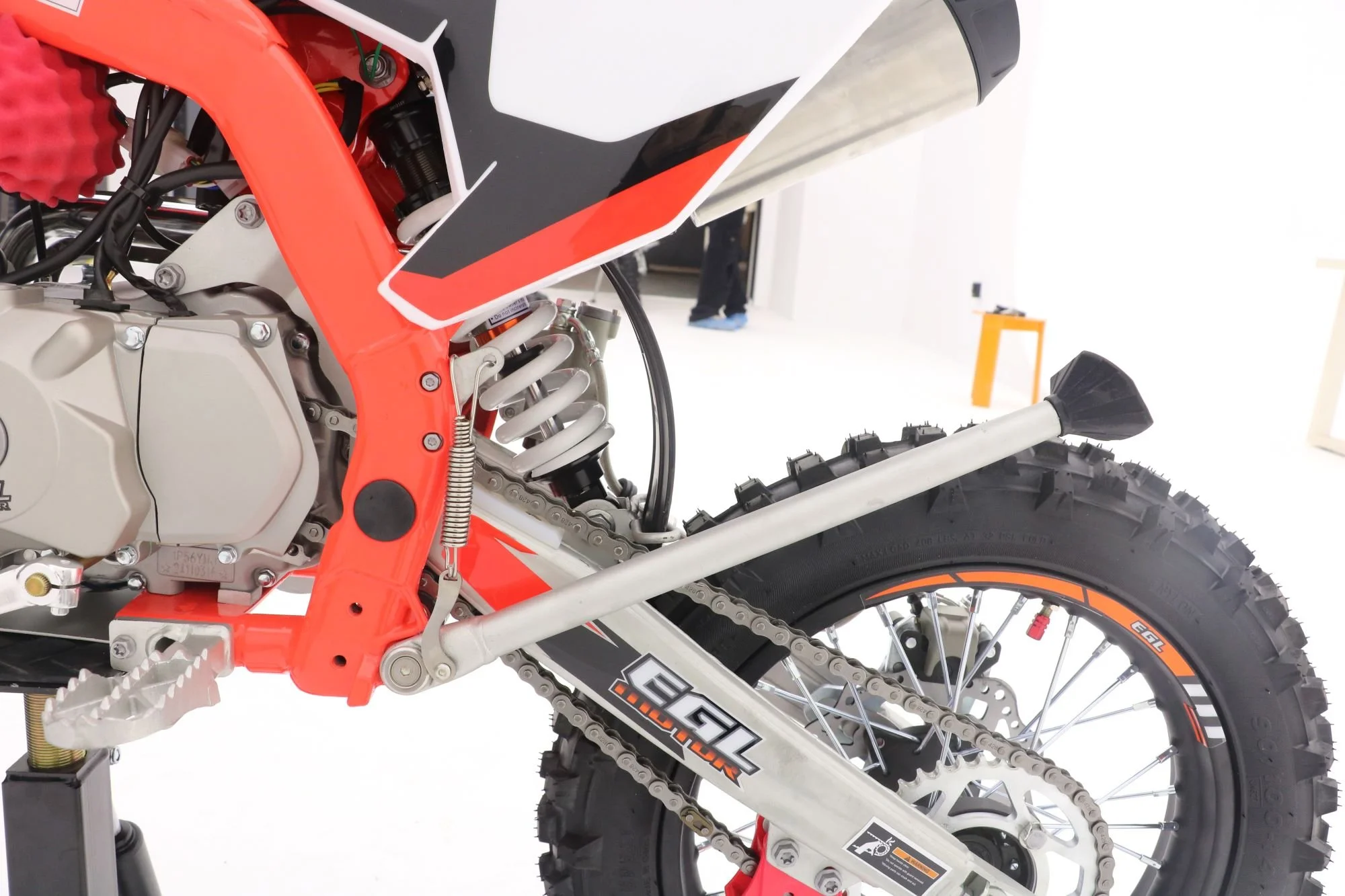

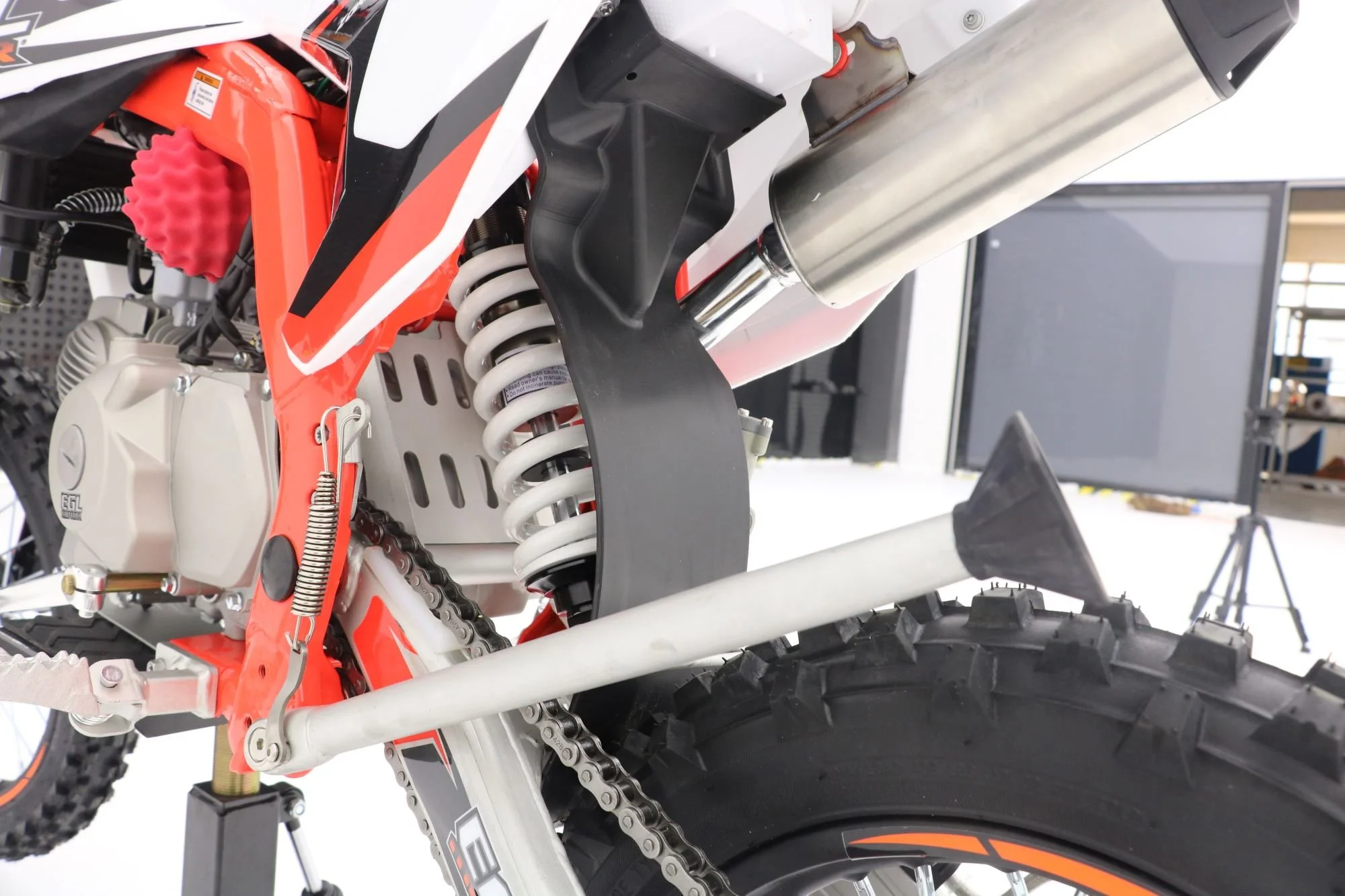

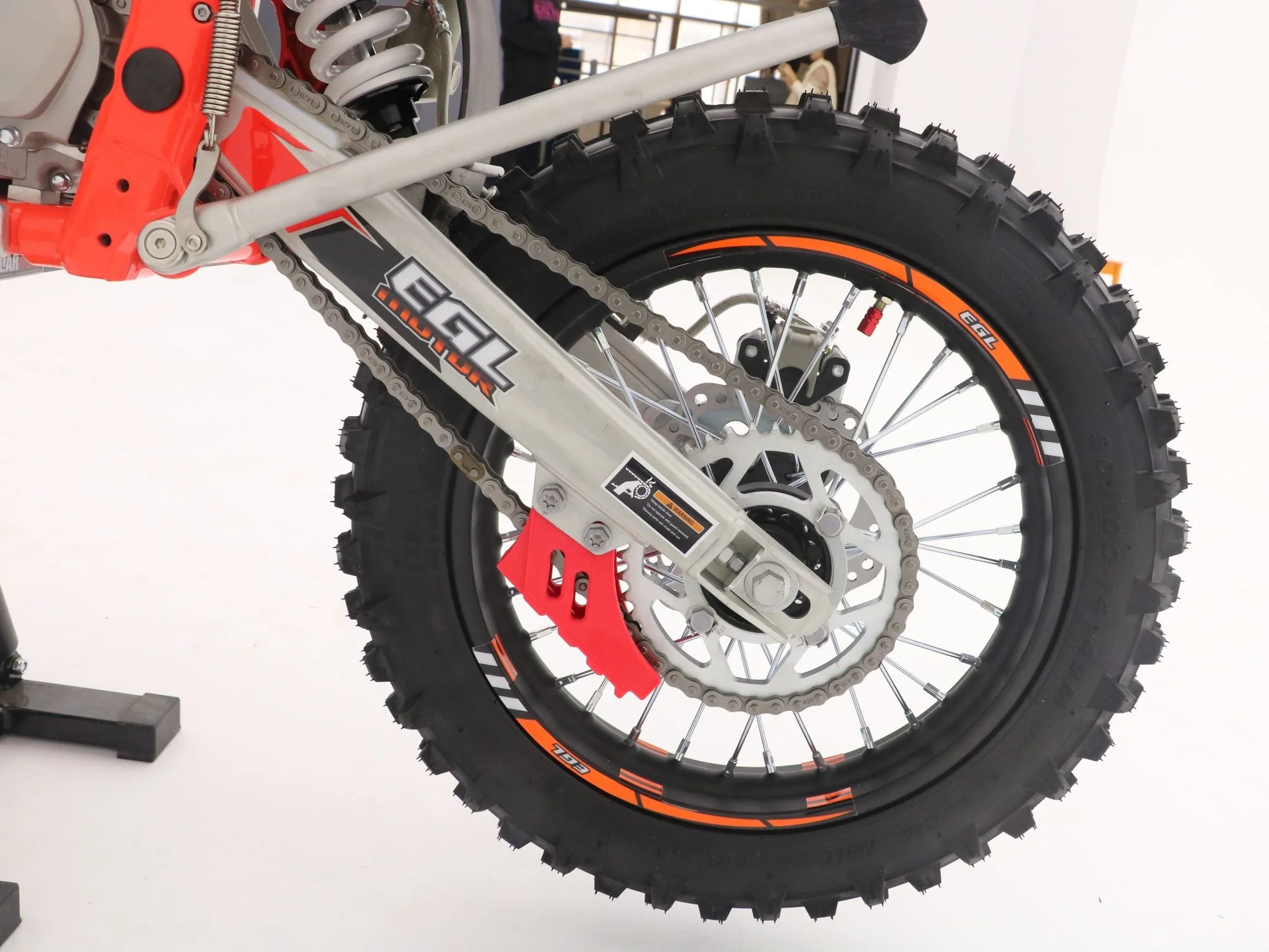

REAR SUSPENSION/ ADJUSTABILITY Aluminum head 280*Ø11 hydraulic damping

WHEEL BASE 1220 mm± 3 mm

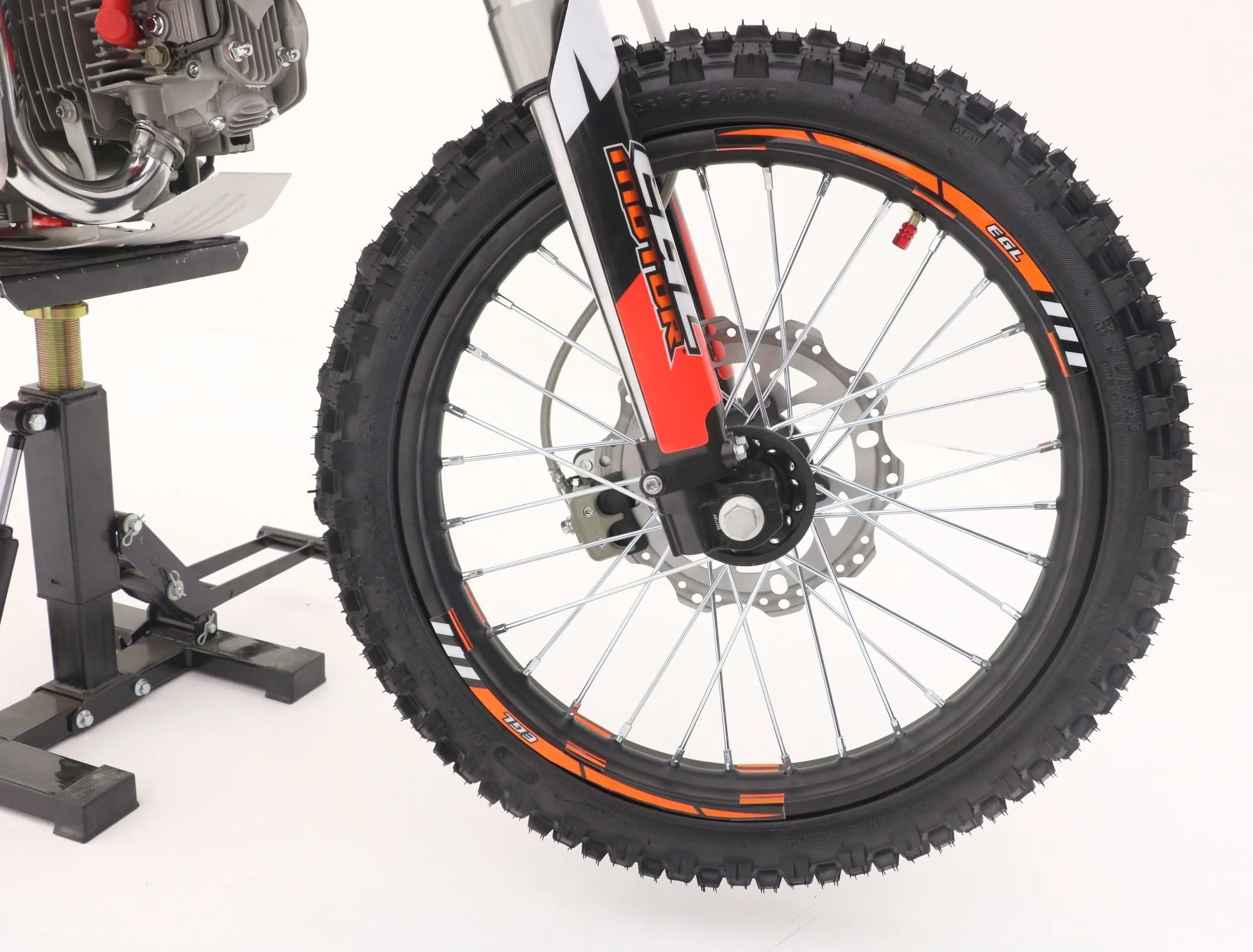

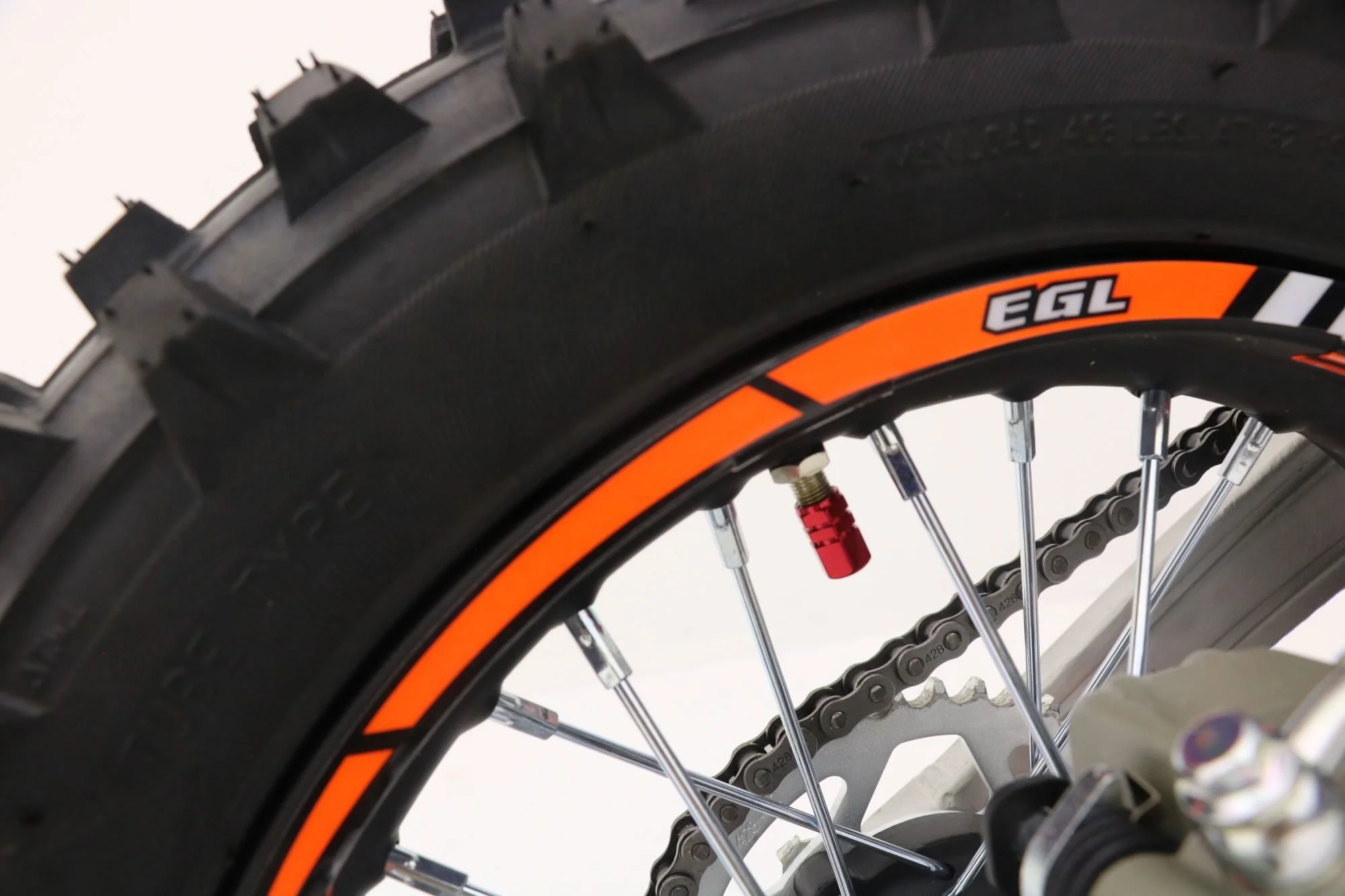

WHEELS FRONT/REAR Aluminum wheels, F17” R14”

TYRES FRONT/REAR 70/100-17; 70/100-14

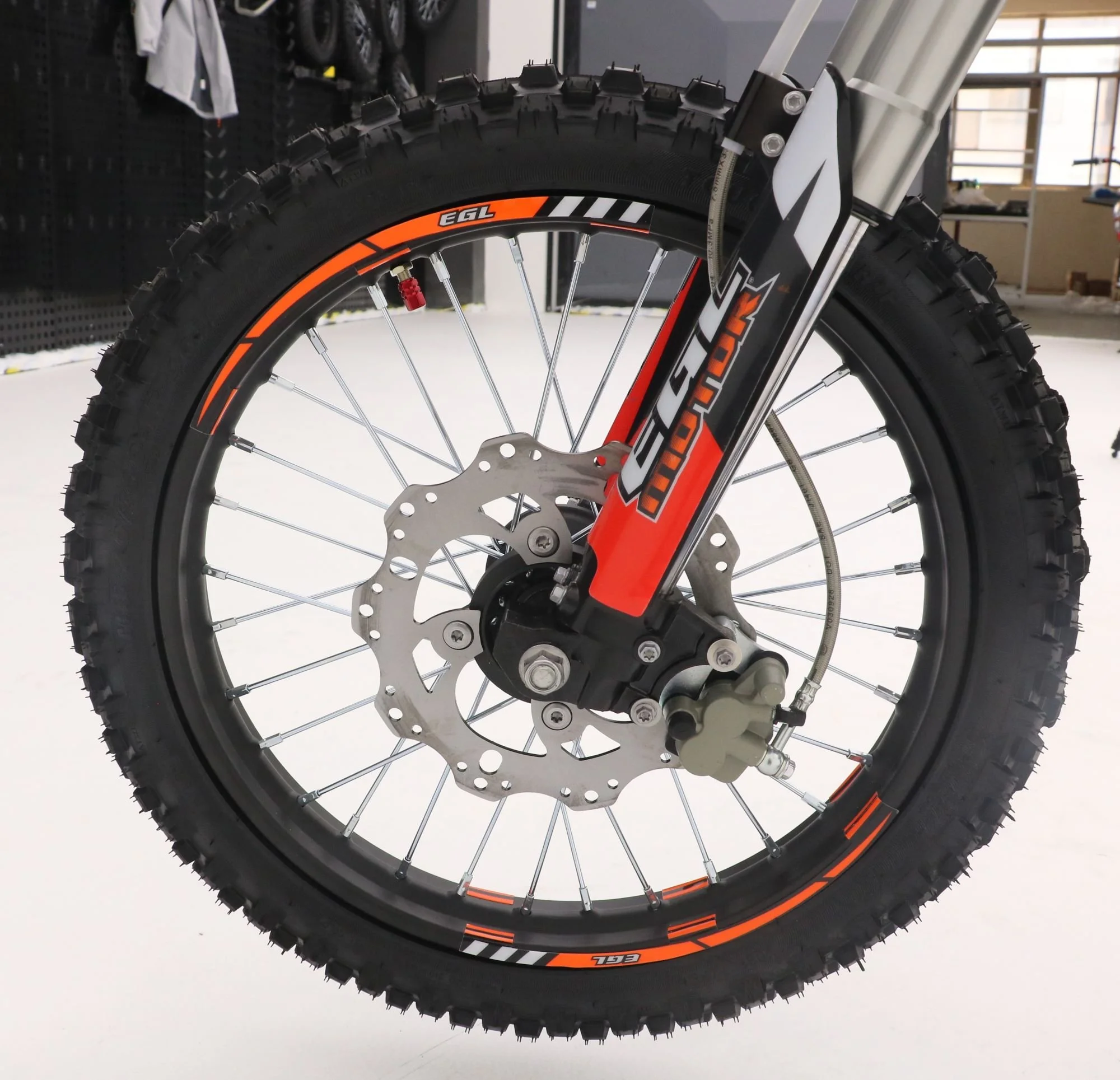

FRONT BRAKE Single piston caliper, brake disc Ø 220 mm

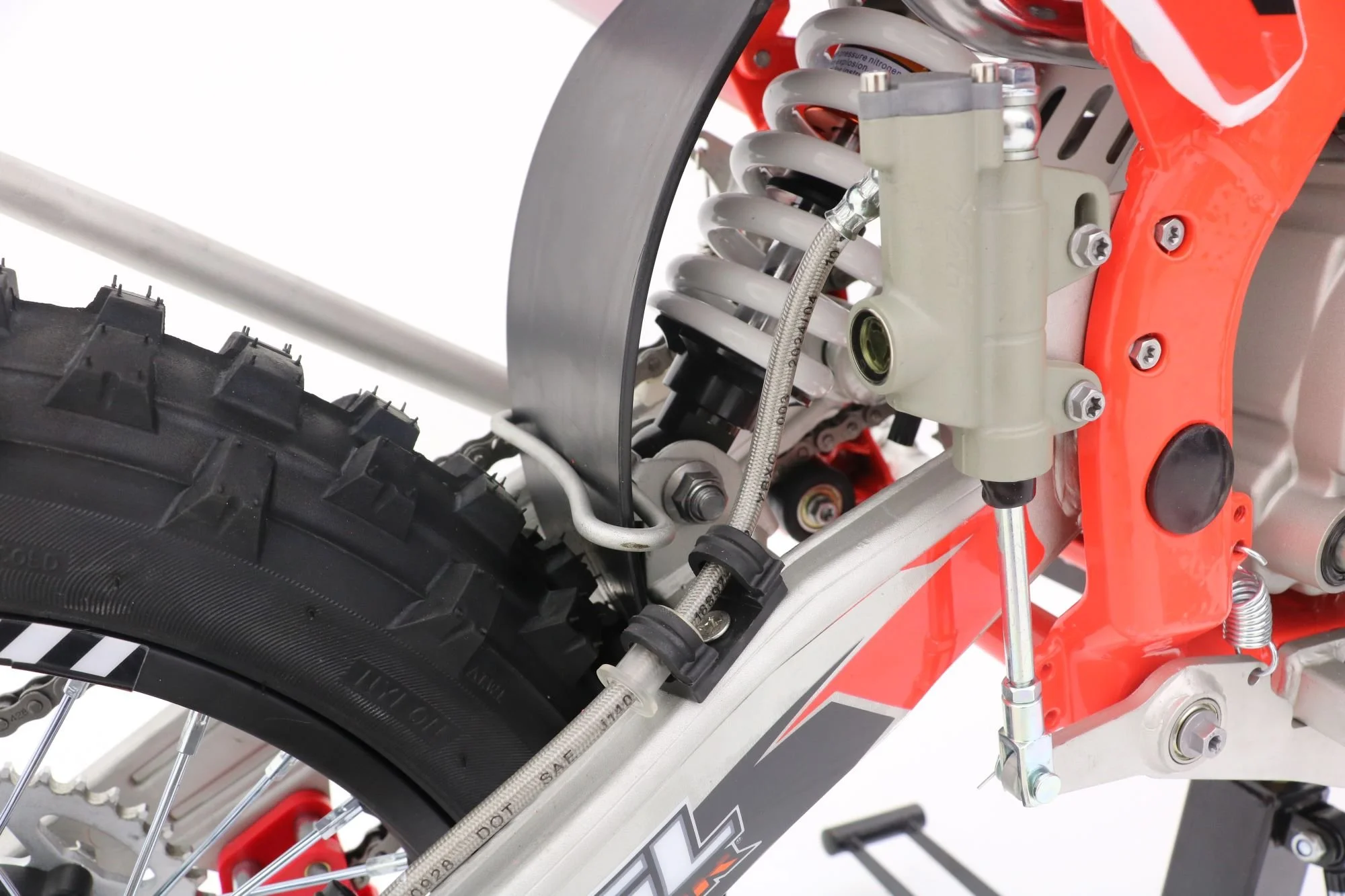

REAR BRAKE Single Piston Caliper, Brake Disc Ø 190 mm

DIMENSIONS & WEIGHT

SEAT HEIGHT/GROUND CLEARANCE 830 mm/370 mm

PRODUCT DIMENSIONS 1730×750×1100 mm

PACKAGING DIMENSIONS 1490×430×800 mm

GROSS/NET WEIGHT 72 kg / 85 kg
