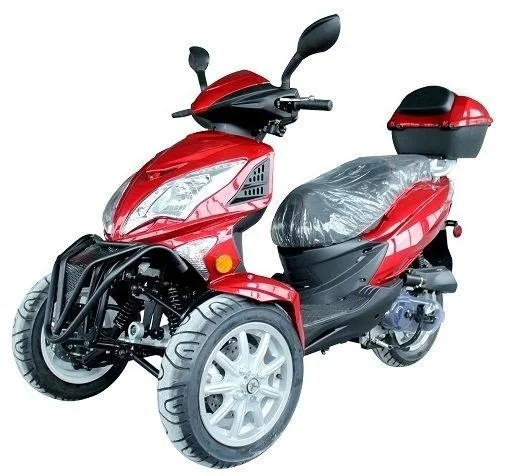

TOPSTAR 50 / 200 TKA
Specification
Engine: Air cooled,Single cylinder,4 Stroke
Engine Type (ml): 49.7cc / 169cc
Bike Stand: Stand Free with balance kit/Center Stand
Starter: Electric & Kick
Battery Type: 12V 7amp
Gear: CVT Automatic
Transmission: Belt Drive
Driving wheel: Rear Wheel Drive with Front Wheel Balance Kit
Ignition: CDI
Max Power: 3.95@7500
Max Torque: 3.5@6000
Cooling System: Air-Cool
Controls: Headlight, Throttle, Brake, Balance Kit ON/OFF, Turn Signal Light, Electric Start, Kill Switch, Horn
Kill switch: Yes
Lighting: Headlight, Tail light, Turn Signal Light
Fuel Capacity (Gal): 2.20
Consumption: Est 85+
Frame: High Strength Steel
Ground Clearance (inch): 5.19
Wheelbase (inch): 56.50
Brakes Front: Individual Hydraulic Disc Brake
Brakes Rear: Hydraulic Disc Brake
Tires Front: 120/70-12
Tires Rear: 130/70-12
Front Suspension: Double A-arm with Balance Kit and Coil Over Suspension
Rear Suspension: Coil Over Suspension
Weight Capacity (lbs): 350
N.W. (lbs): 316.8
G.W. (lbs): 378.4
Overall Length (inch): 81.50
Overall Width (inch): 41.04
Overall Height (inch): 44.01
